S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 2007-2025 Mercedes Sprinter 144" & 170"

S&B 16 Gallon Passenger Side Undercarriage Fresh Water Tank 2007-2025 Mercedes Sprinter 144" & 170"

:
10-3009
|
UPC:
841372050442
$299.00
Description

Tank Dimensions:
45.33" Length x 15.5" Width x 8.31" Height

Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount)

Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.

TEI Tested & Listed / RVIA Approved.

  • Straps Included Yes
  • S&B Capacity (Approximate) 16
  • Tank Type Passenger Side Undercarriage
  • Weight Dry 20 Lbs



16 GALLON PASSENGER SIDE UNDERCARRAIGE FRESH WATER TANK

The S&B 16-gallon passenger side undercarriage fresh water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. Our tanks are perfect for your home build or build needing RVIA certification. We make our tanks in-house and pressure test every tank.

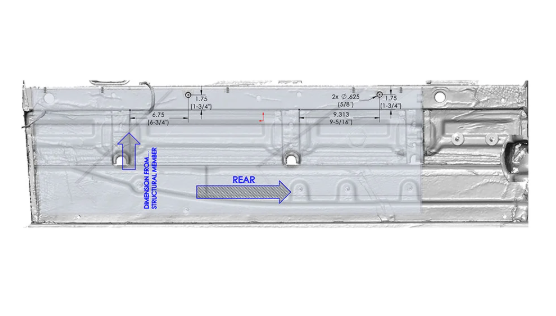

***Please confirm you have the inboard hole for the tank hanger. Please see drawing below which shows a transparent tank and measurements from the lateral crossmembers where the inboard hole for the hanger should be. If you don't have the hole in your body, you can drill the hole.

Fitment
Part Type:
Replacement Water Tank
