OVERVIEW
When developing suspension components for the new Ford F-250/F-350 Super Duty, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide balanced on and off-road performance. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.
ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for enthusiasts that demand the highest levels of performance, ruggedness, and durability out of their suspension systems.
KEY FEATURES
- Fits 2020-2023 F250 / F350 4WD applications
- Approximately 25% increased front wheel travel over stock
- ICON-engineered 2020-UP specific dual rate coil springs deliver exceptional vehicle control over varying terrain
- Radius arm drop brackets correct geometry and caster for optimal alignment specs
- 4-link system eliminates bind during articulation and maintains positive caster through the entire range of travel
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
- Corrosion resistant hard anodized shock body with 7/8″ shaft (2.5 Aluminum Series shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
- ICON CDC Valve allows quick and easy end user compression adjustability
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or defects
- Made in the USA
TECH INFO
- Lift heights based on 4WD crew cab diesel configuration
- Tremor package reduces advertised lift heights by approximately 1.00"
- Track Bar is recommended for optimal steering alignment
- Gas trucks will yield slightly taller front lift height
- Radius arm and 4-link brackets require minor drilling for installation
- Brake line kit (Part #61110 or #61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Bump stop spacer kit (Part #64037) required if ICON steering stabilizer kit (Part #65000) is installed with 2.5" system

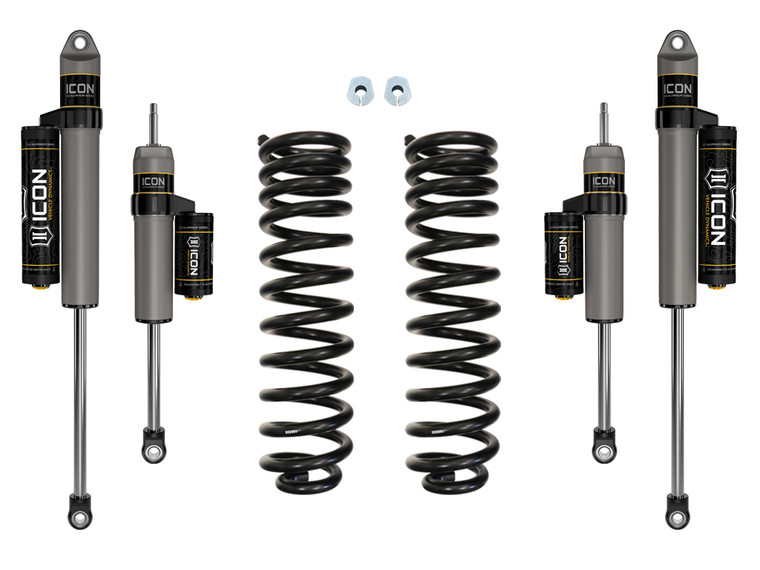

SYSTEM COMPONENTS:
- 62511 (QTY: 1) | 20-UP FSD FRONT 2.5” DUAL RATE SPRING KIT
- 67700P (QTY: 1) | 05-UP FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
- 37705P (QTY: 1) | 99-UP FSD 0-3" REAR 2.5 VS PB PAIR
