Carli CS-DC20-1419-D 3.25" Commuter System, 2014+ Ram 2500 Trucks
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 3.25-3.5″ | .5-1″ | 9.6″ | 11″ | 2.0 | 37″ x 12.5″ |
A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar option to form a complete system
*This system will not work on the auto-level air Suspension*
Carli's signature Fox Shock Tuning in 2.0″ IFP Shocks provide users with a comfortable, vastly improved on-road ride. The Carli Commuter 2.0 system is designed for people seeking the best on-road ride quality on a budget. Utilizing front and rear Fox 2.0” internal reservoir shocks, we’ve developed a Carli Signature shock tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The Fox 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55* F. This system was tuned with factory 20” wheels on factory tires.
Your Ram truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted .5”-1.5” via Carli’s progressive coil springs and will reduce payload and towing capacity 15% from a stock 2500.
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel.
Everything is included to support flawless operation of all components. We include bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs.
Wheel and Tire: This Carli system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.

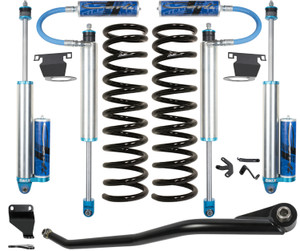

Carli Suspension CS-DC20-1419-D kit includes:
CS-DEL-R-14 - Rear Sway Bar End Links
CS-DFBD-1 - Front Bump Drops
CS-DMRC-14-R - Rear Multi-Rate Coil Springs
CS-DLRC-14-D - Front Linear-Rate Coil Springs
CS-DATB-1419 - Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-14 - Radius Arm Drops
CS-DRBD-AL - Rear Bump Drops
CS-DPRBDROP-14-R - Rear Track Bar Drop
CS-DC20SPKG-14-D - Carli Tuned Fox 2.0" IFP Shocks, Front and Rear
